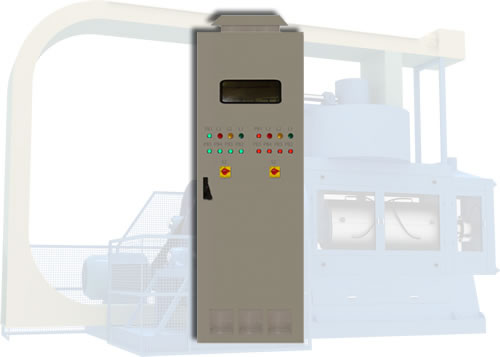

CONTROL PANEL FOR CHILLEX™

This is India’s First Machine to produce Pungent Mustard Oil without Kacchi Ghani through CHILLEX™ Technology.  The main features of CHILLEX™ are compact design, modern looks, higher capacity, hygiene, most economical, fully automized, hence optimizing pungent oil extraction at minimum overheads and space. Thus, the following chart is showing the process of mustard oil production:

Technical Specifications for Control Panel (for Chillex™ Machine)

Control Unit

VFD based Control Panel with powdered coated TME with ventilation. TME with a fixing frame to be installed on a concrete foundation.

Dimension of Panel

2000(H) x 600(W) x 800(D)

Operating Voltage

415/440V, 50Hz.

Operating Equipment and Function

Operation using Push-button located outside of panel.

Control Mechanism

It is VFD based Control Panel consist of Contactors, VFD's, C.T.'s, etc. which are mounted on insulated polymer sheet. The whole system is encapsulated in a TME.

Control Function
(For Chillex Control Panel)

It controls the RPM of main Motor.

♦ CHILLEX PATENT NO. : DESIGN NO. : 275923 CLASS 15-99. Any imitation thereof will attract civil damages liability under the Patent Act 1970 ♦
